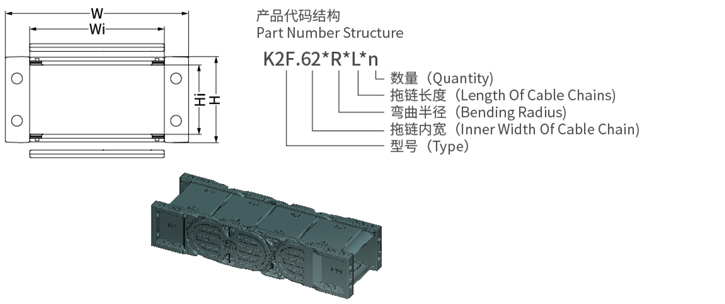

| 型号 | 弯曲半径 | 内高＜Hi＞ | 内宽＜Wi＞ | 外高＜H＞ | 外宽＜w＞ | 重量＜G＞ | 备注 |
| mm (in.) | mm (in.) | mm (in.) | mm (in.) | mm (in.) | kg/m (ibs/ftj) | ||
| K2F.62.150 | 250/300/350/400 /500/550/600/650 | 62 (2.44) | 151 (5.94) | 95 (3.74) | 187 (7.36) | 5.52 (2.73) | |
| K2F.62.200 | 201 (7.91) | 237 (9.33) | 6.03 (4.10) |
| R | Hl | D | K | P |
| mm (in.) | mm (in.) | mm (in.) | mm (in.) | mm (in.) |
| 250 (9.84) | 595 (23.43) | 455 (17.91) | 981 (38.62) | 98 (3.86) |
| 300 (11.81) | 695 (27.36) | 505 (19.88) | 1138 (44.80) | |
| 350 (13.78) | 795 (31.30) | 555 (21.85) | 1295 (50.98) | |
| 400 (15.75) | 895 (35.24) | 605 (23.82) | 1452 (57.17) | |
| 500 (19.69) | 1095 (43.11) | 705 (27.76) | 1766 (69.53) | |
| 550 (21.65) | 1195 (47.05) | 755 (29.72) | 1923 (75.71) | |
| 600 (23.62) | 1295 (50.98) | 805 (31.69) | 2080 (81.89) | |
| 650 (25.59) | 1395 (54.92) | 855 (33.66) | 2237 (88.07) |

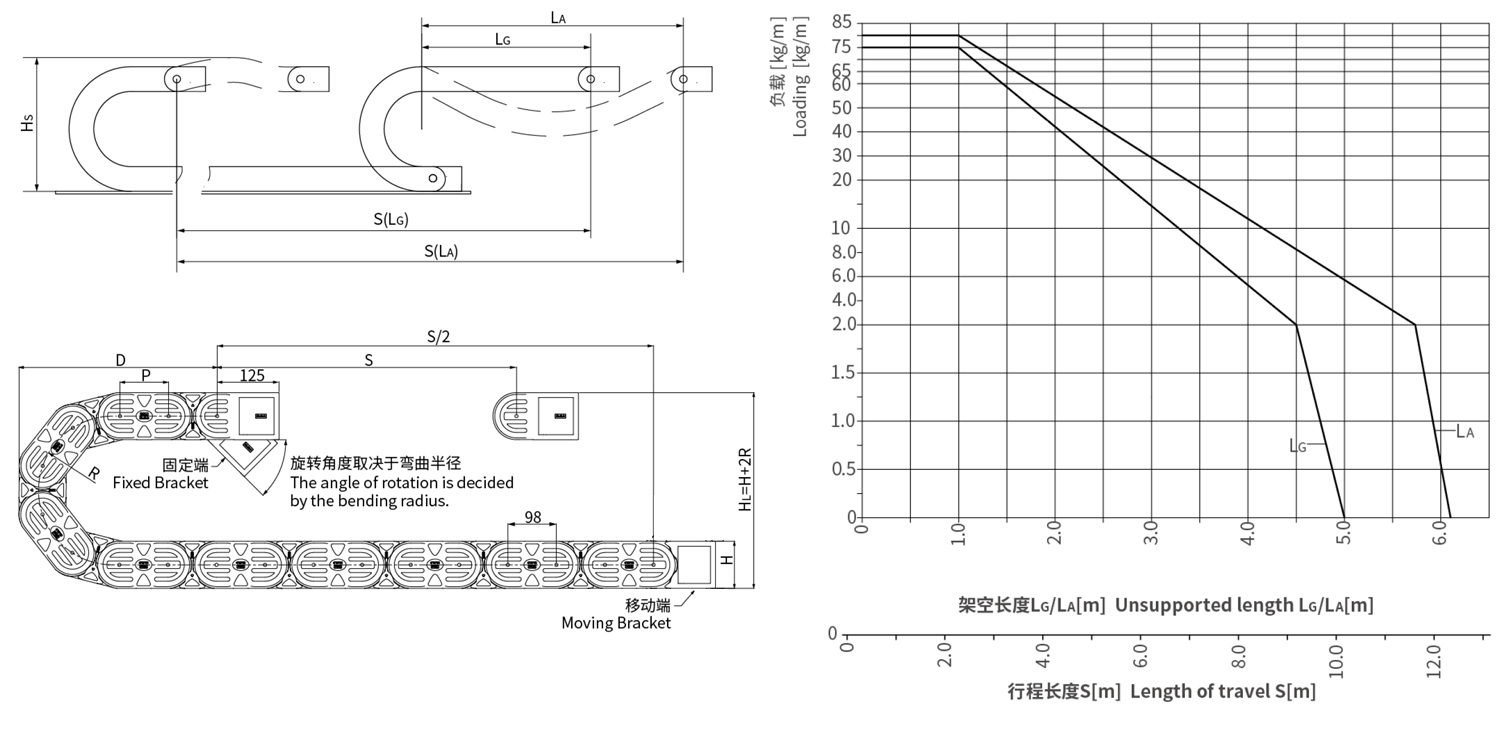

· 架空长度：
LG=直线架空长度
LA=安全塌腰架空长度
S=行程长度
R=弯曲半径
P=节距
L=拖链长度
N=每米链节数
HL=理论安装高度
HS=实际安装高度
D=拖链退回极限位置时的最小距离
K=Л ∙ R+2P
* K值可以在科瑞斯相关表格中查询
| R | Hl | D | K | P |
| mm (in.) | mm (in.) | mm (in.) | mm (in.) | mm (in.) |
| 250 (9.84) | 595 (23.43) | 455 (17.91) | 981 (38.62) | 98 (3.86) |
| 300 (11.81) | 695 (27.36) | 505 (19.88) | 1138 (44.80) | |
| 350 (13.78) | 795 (31.30) | 555 (21.85) | 1295 (50.98) | |
| 400 (15.75) | 895 (35.24) | 605 (23.82) | 1452 (57.17) | |
| 500 (19.69) | 1095 (43.11) | 705 (27.76) | 1766 (69.53) | |
| 550 (21.65) | 1195 (47.05) | 755 (29.72) | 1923 (75.71) | |
| 600 (23.62) | 1295 (50.98) | 805 (31.69) | 2080 (81.89) | |
| 650 (25.59) | 1395 (54.92) | 855 (33.66) | 2237 (88.07) |
※ 实际安装高度：HS=HL+50mm
※ 每节拖链长度：L=S/2+K(固定端在中间)
※ 每米链节数：N=10(980mm)
