| 型号 | 弯曲半径 | 内高＜Hi＞ | 内宽＜Wi＞ | 外高＜H＞ | 外宽＜w＞ | 重量＜G＞ | 备注 |
| mm (in.) | mm (in.) | mm (in.) | mm (in.) | mm (in.) | kg/m (ibs/ftj) | ||
| K2Q.62.75 | 150/200/250/300/350 /400/450/500/550/600/650 | 62 (2.44) | 76 (2.99) | 95 (3.74) | 112 (4.41) | 4.29 (2.78) | |
| K2Q.62.100 | 101 (3.98) | 137 (5.39) | 4.49 (2.91) | ||||
| K2Q.62.125 | 126 (4.96) | 162 (6.38) | 4.71 (3.06) | ||||
| K2Q.62.150 | 151 (5.94) | 187 (7.36) | 4.95 (3.22) | ||||
| K2Q.62.175 | 176 (6.93) | 212 (8.35) | 5.18(3.37) | ||||
| K2Q.62.200 | 201 (7.91) | 237 (9.33) | 5.41 (3.52) | ||||
| K2Q.62.250 | 251 (9.88) | 287 (11.30) | 5.87 (3.82) | ||||
| K2Q.62.300 | 301 (11.85) | 337 (13.27) | 6.33 (4.13) | ||||
| K2Q.62.350 | 351 (13.82) | 387 (15.24) | 6.79 (4.43) | ||||
| K2Q.62.400 | 401 (15.79) | 437 (17.20) | 7.25 (4.73) | ||||
| K2Q.62.450 | 451 (17.76) | 487 (19.17) | 7.71(5.04) | ||||
| K2Q.62.500 | 501 (19.72) | 537 (21.14) | 8.17 (5.34) | ||||
| K2Q.62.550 | 551 (21.69) | 587 (23.11) | 8.63 (5.64) | ||||
| K2Q.62.600 | 601 (23.66) | 637 (25.08) | 9.09 (5.95) |
| R | Hl | D | K | P |
| mm (in.) | mm (in.) | mm (in.) | mm (in.) | mm (in.) |
| 150 (5.91) | 395 (15.55) | 355 (13.98) | 667 (26.26) | 98 (3.96) |
| 200 (7.87) | 495 (19.49) | 405 (15.94) | 824 (32.44) | |
| 250 (9.84) | 595 (23.43) | 455 (17.91) | 981 (38.62) | |
| 300 (11.81) | 695 (27.36) | 505 (19.88) | 1138 (44.80 | |
| 350 (13.78) | 795 (31.30) | 555 (21.85) | 1295 (50.98) | |
| 400 (15.75) | 895 (35.24) | 605 (23.82) | 1452 (57.17) | |
| 500 (19.69) | 1095 (43.11) | 705 (27.76) | 1766 (69.53) | |
| 550 (21.65) | 1195 (47.05) | 755 (29.72) | 1923 (75.71) | |
| 600 (23.62) | 1295 (50.98) | 805 (31.69) | 2080 (81.89) | |
| 650 (25.59) | 1395 (54.92) | 855 (33.66) | 2237 (88.07) |
· 架空长度：
LG=直线架空长度
LA=安全塌腰架空长度
S=行程长度
R=弯曲半径
P=节距
L=拖链长度
N=每米链节数
HL=理论安装高度
HS=实际安装高度
D=拖链退回极限位置时的最小距离
K=Л ∙ R+2P
* K值可以在科瑞斯相关表格中查询
| R | Hl | D | K | P |
| mm (in.) | mm (in.) | mm (in.) | mm (in.) | mm (in.) |
| 150 (5.91) | 395 (15.55) | 355 (13.98) | 667 (26.26) | 98 (3.96) |
| 200 (7.87) | 495 (19.49) | 405 (15.94) | 824 (32.44) | |
| 250 (9.84) | 595 (23.43) | 455 (17.91) | 981 (38.62) | |
| 300 (11.81) | 695 (27.36) | 505 (19.88) | 1138 (44.80 | |
| 350 (13.78) | 795 (31.30) | 555 (21.85) | 1295 (50.98) | |
| 400 (15.75) | 895 (35.24) | 605 (23.82) | 1452 (57.17) | |
| 500 (19.69) | 1095 (43.11) | 705 (27.76) | 1766 (69.53) | |
| 550 (21.65) | 1195 (47.05) | 755 (29.72) | 1923 (75.71) | |
| 600 (23.62) | 1295 (50.98) | 805 (31.69) | 2080 (81.89) | |
| 650 (25.59) | 1395 (54.92) | 855 (33.66) | 2237 (88.07) |
※ 实际安装高度：HS=HL+50mm
※ 每节拖链长度：L=S/2+K(固定端在中间)
※ 每米链节数：N=10(980mm)
· 塑料接头或钢制接头
※ 双侧独立式塑料接头或钢制接头
※ 双侧接头可选择性转动角度
※ 耐腐蚀＆耐摩擦
※ 可提供预装配形式
※ 可实现内外连接

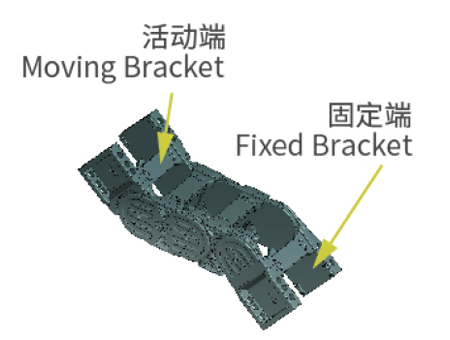

· 可选配的接头安装方式：
| 拖链型号 | 其他编码 | Wo尺寸 | B尺寸 |
| mm (in.) | mm (in.) | ||
| K2Q.62.75 | 内外片 K211013 Internal main/External main body 内外接头 Internal/External bracket K211014 隔离片 Separator 13127 | 120 (4.72) | 99 (3.90) |
| K2Q.62.100 | 145 (5.71) | 124 (4.88) | |
| K2Q.62.125 | 170 (6.69) | 149 (5.87) | |
| K2Q.62.150 | 195 (7.68) | 174 (6.85) | |
| K2Q.62.175 | 220 (8.66) | 199 (7.83) | |
| K2Q.62.200 | 245 (9.65) | 224 (8.82) | |
| K2Q.62.250 | 295 (11.61) | 274 (10.79) | |
| K2Q.62.300 | 345 (13.58) | 324 (12.76) | |
| K2Q.62.350 | 395 (11.61) | 274 (10.79) | |
| K2Q.62.400 | 445 (17.52) | 424 (16.69) | |
| K2Q.62.450 | 495 (19.49) | 474 (18.66) | |
| K2Q.62.500 | 545 (21.46) | 524 (20.63) | |
| K2Q.62.550 | 595 (23.43) | 574 (22.60) | |
| K2Q.62.600 | 645 (25.39) | 624 (24.57) |

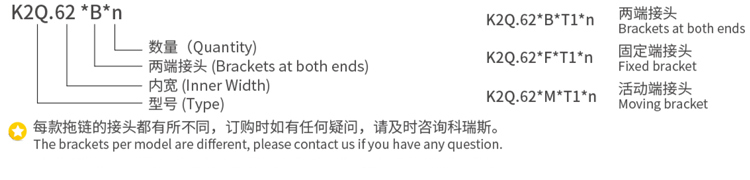

· 产品代码结构：
