| 型号 | 弯曲半径 | 内高＜Hi＞ | 内宽＜Wi＞ | 外高＜H＞ | 外宽＜w＞ | 重量＜G＞ | 备注 |
| mm (in.) | mm (in.) | mm (in.) | mm (in.) | mm (in.) | kg/m (ibs/ftj) | ||
| K2Q.56.75 | 135/150/175/200/240 /250/300/350/400/450/500 | 56 (2.20) | 75 (2.95) | 85 (3.35) | 107 (4.21) | 3.70 (2.22) | |
| K2Q.56.100 | 100 (3.94) | 132 (5.20) | 3.97 (2.38) | ||||
| K2Q.56.125 | 125 (4.92) | 157 (6.18) | 4.21 (2.53) | ||||
| K2Q.56.150 | 150 (5.91) | 182 (7.17) | 4.46 (2.68) | ||||
| K2Q.56.175 | 175 (6.89) | 207 (8.15) | 4.72(2.84) | ||||
| K2Q.56.200 | 200 (7.87) | 232 (9.13) | 4.98 (2.99) | ||||
| K2Q.56.250 | 250 (9.84) | 282 (11.10) | 5.51 (3.31) | ||||
| K2Q.56.300 | 300 (11.81) | 332 (13.07) | 6.03 (3.62) |
| R | Hl | D | K | P |
| mm (in.) | mm (in.) | mm (in.) | mm (in.) | mm (in.) |
| 135 (5.31) | 355 (13.98) | 314 (12.36) | 606 (23.85) | 91 (3.58) |
| 150 (5.91) | 385 (15.16) | 329 (12.95) | 653 (25.71) | |
| 175 (6.89) | 435 (17.13) | 354 (13.94) | 732 (28.80) | |
| 200 (7.87) | 485 (19.09) | 379 (14.92) | 810 (31.89) | |
| 240 (9.45) | 565 (22.24) | 419 (16.50) | 936 (36.83) | |
| 250 (9.84) | 585 (23.03) | 429 (16.89) | 967 (38.07) | |
| 300 (11.81) | 685 (26.97) | 479 (18.86) | 1124 (44.25) | |
| 350 (13.78) | 785 (30.91) | 529 (20.83) | 1281 (50.43) | |
| 400 (15.75) | 885 (34.84) | 579 (22.80) | 1438 (56.61) | |
| 450 (17.72) | 985 (38.78) | 629 (24.76) | 1595 (62.80) | |
| 500 (19.69) | 1085 (42.72) | 679 (26.73) | 1752 (68.98) |

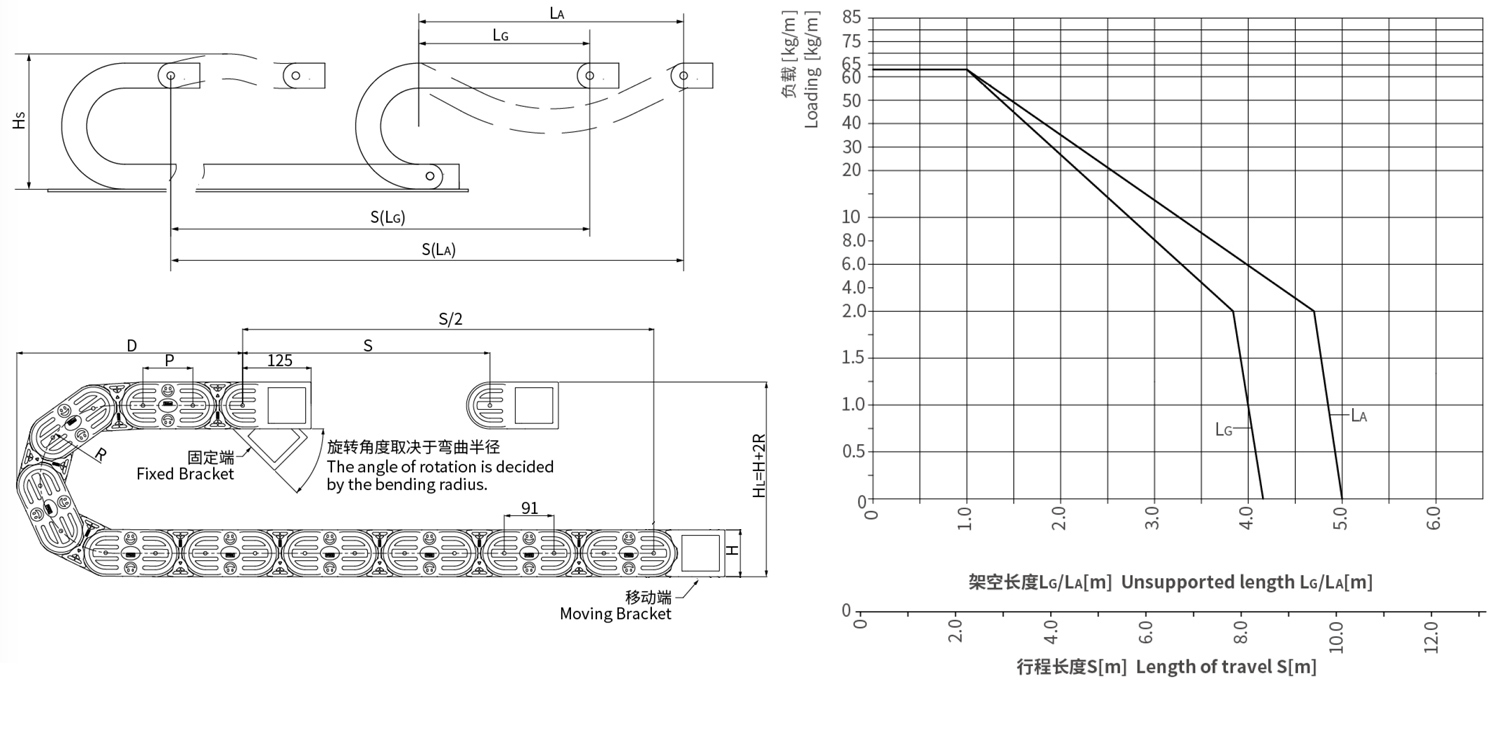

· 架空长度：
LG=直线架空长度
LA=安全塌腰架空长度
S=行程长度
R=弯曲半径
P=节距
L=拖链长度
N=每米链节数
HL=理论安装高度
HS=实际安装高度
D=拖链退回极限位置时的最小距离
K=Л ∙ R+2P
* K值可以在科瑞斯相关表格中查询
| R | Hl | D | K | P |
| mm (in.) | mm (in.) | mm (in.) | mm (in.) | mm (in.) |
| 135 (5.31) | 355 (13.98) | 314 (12.36) | 606 (23.85) | 91 (3.58) |
| 150 (5.91) | 385 (15.16) | 329 (12.95) | 653 (25.71) | |
| 175 (6.89) | 435 (17.13) | 354 (13.94) | 732 (28.80) | |
| 200 (7.87) | 485 (19.09) | 379 (14.92) | 810 (31.89) | |
| 240 (9.45) | 565 (22.24) | 419 (16.50) | 936 (36.83) | |
| 250 (9.84) | 585 (23.03) | 429 (16.89) | 967 (38.07) | |
| 300 (11.81) | 685 (26.97) | 479 (18.86) | 1124 (44.25) | |
| 350 (13.78) | 785 (30.91) | 529 (20.83) | 1281 (50.43) | |
| 400 (15.75) | 885 (34.84) | 579 (22.80) | 1438 (56.61) | |
| 450 (17.72) | 985 (38.78) | 629 (24.76) | 1595 (62.80) | |
| 500 (19.69) | 1085 (42.72) | 679 (26.73) | 1752 (68.98) |
※ 实际安装高度：HS=HL+50mm
※ 每节拖链长度：L=S/2+K(固定端在中间)
※ 每米链节数：N=11(1001mm)
· 塑料接头或钢制接头
※ 双侧独立式塑料接头或钢制接头
※ 双侧接头可选择性转动角度
※ 耐腐蚀＆耐摩擦
※ 可提供预装配形式
※ 可实现内外连接

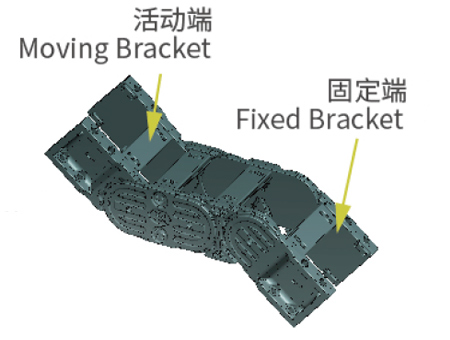

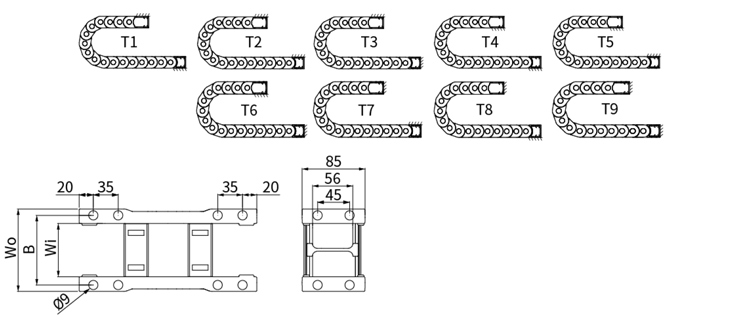

· 可选配的接头安装方式：
| 拖链型号 | 其他编码 | Wo尺寸 | B尺寸 |
| mm (in.) | mm (in.) | ||
| K2Q.56.75 | 内外片 K210928 Internal main/External main body 内外接头 Internal/External bracket K210929 隔离片 Separator 14273 | 116 (4.57) | 98 (3.86) |
| K2Q.56.100 | 141 (5.55) | 123 (4.84) | |
| K2Q.56.125 | 166 (6.54) | 148 (5.83) | |
| K2Q.56.150 | 191 (7.52) | 173 (6.81) | |
| K2Q.56.175 | 216 (8.50) | 198 (7.80) | |
| K2Q.56.200 | 241 (9.49) | 223 (8.78) | |
| K2Q.56.250 | 291 (11.46) | 273 (10.75) | |
| K2Q.56.300 | 341 (13.43) | 323 (12.72) |

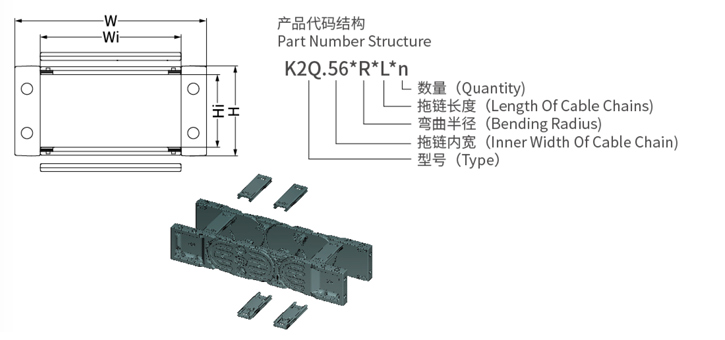

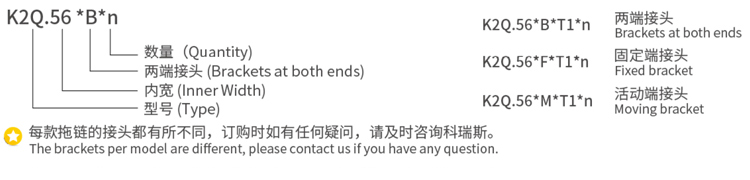

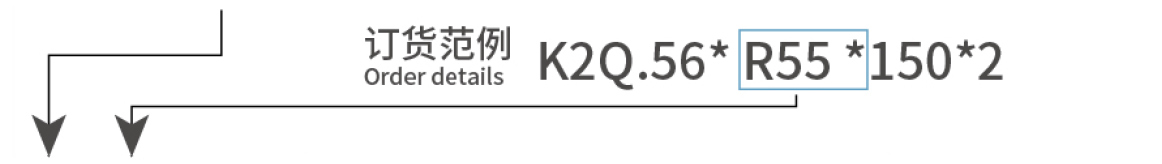

· 产品代码结构：
